NanoScribe 3D Lithography

Keywords: Georgia Tech, gatech, printing, patterning, micro, fabrication, 3D print, two photon polymerization, lithography, photoresist, cleanroom, organic

Information
Contact
Schedule
Training
Equipment Description

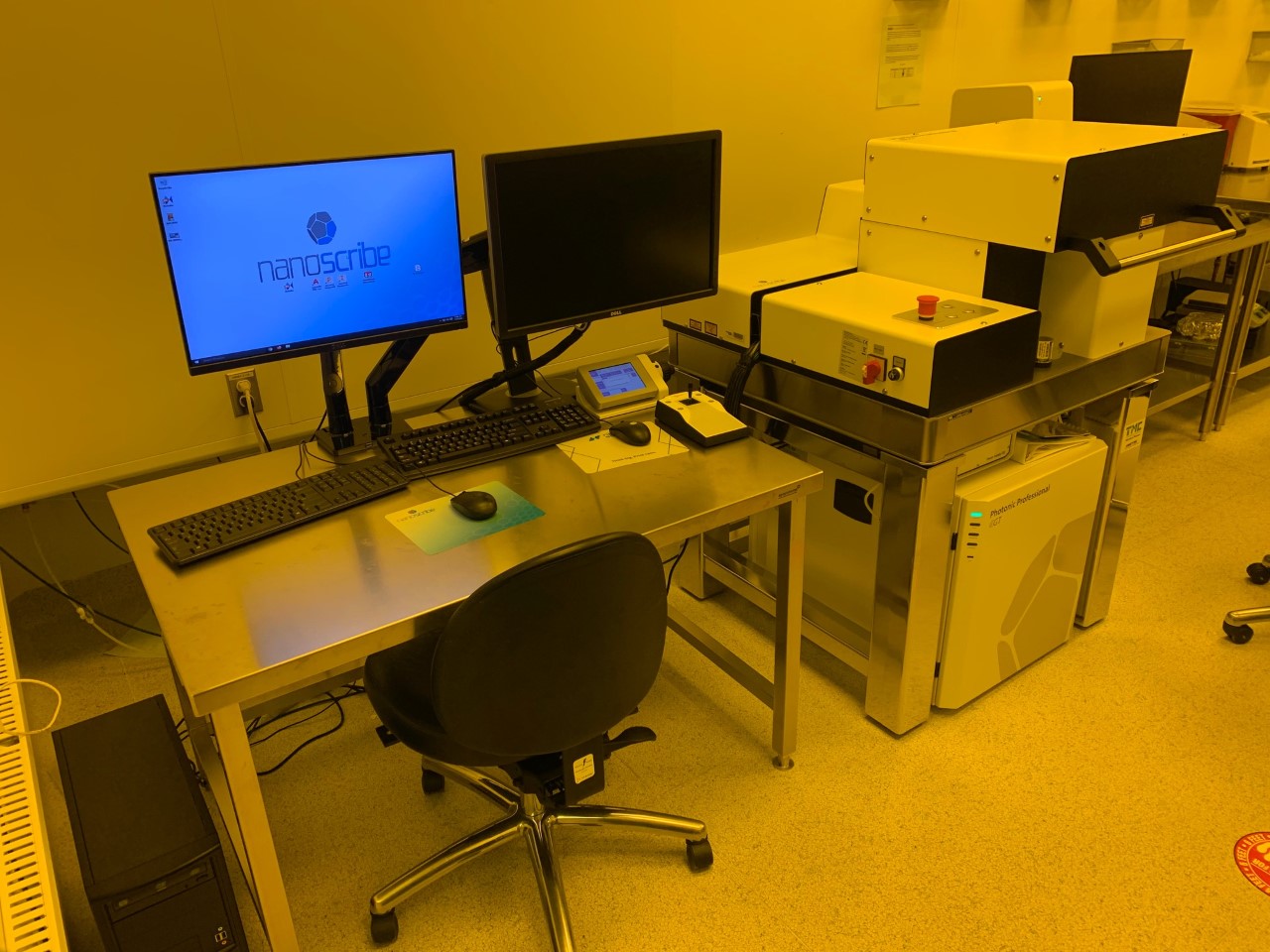

The Georiga Tech Nanoscribe Photonic Professional GT, located in the Georgia Tech Biocleanroom, is a next generation 3D laser lithography system that sets new standards in 3D micro printing and maskless lithography. It combines two writing modes in one device: an ultra-precise piezo mode for arbitrary 3D trajectories (FBMS) and the high-speed galvo mode (MBFS) for fastest structuring in a layer-by-layer fashion. In combination with the software package, the system is embedded best along the 3D printing workflow and offers a high degree of automation for direct manufacturing. In addition, the Photonic Professional GT allows for the fabrication of high-resolution photo masks and other direct write applications.

Key Features:

  • Highest resolution commercially available micro 3D printer
  • High speed 3D printing by galvo technology
  • Accurate and precise by piezo technology
  • Two photon polymerization (2PP) of various UV-curable photoresists
  • Writing area up to 100 × 100 mm² range
  • High-sensitivity microscope camera for realtime observation of the printing process
  • User-friendly software package for 3D printing workflow
  • Easy CAD import via STL file format
Institute Georgia Tech
Department IEN - Micro/Nano Fabrication Facility
Sub Tool Of
Georgia Tech Biocleanroom
